Двигатель MAC-QE-132M-122-B3-2048ppr Vascat

Двигатель  MAC-QE-132M-122-B3-2048ppr Vascat- купить в компании АРВЕ. Чтобы узнать наличие, сроки поставки, условия доставки, скачать прайс-лист, каталог или инструкцию, получить консультацию по всем возникающим вопросам, обращайтесь к нашим менеджерам удобным вам способом.

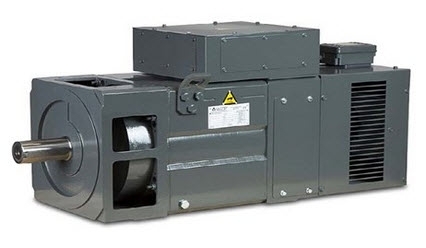

Vascat - 0/17.3/17.3kW x 0/1653/3800RPM – Square Frame AC Vector Motor, foot mounting (B3) for 400V 3 phase supply.
132 Frame, Force Cooled (IC416) to IP54.
Includes force cooling fan, Ball bearing at DE and 2048ppr x 15V HTL Encoder.

Use with Closed Loop AC Vector Drives having the encoder board option fitted for full closed loop vector control.

Continuous Output:  17.3kW.
Overload:  150% to S6 (40%), subject to reduced maximum speed.
Base Speed:  1653RPM.
Maximum Speed at Full Output:  3800RPM.
Torque to Base Speed:  100Nm.
Torque at Maximum Speed:  43.5Nm.
Full Load Current:  36A.
Voltage:  400V 3 Phase.
Supply Frequency:  56/129Hz at Base/Maximum Speed.
Magnetising Current:  19A.

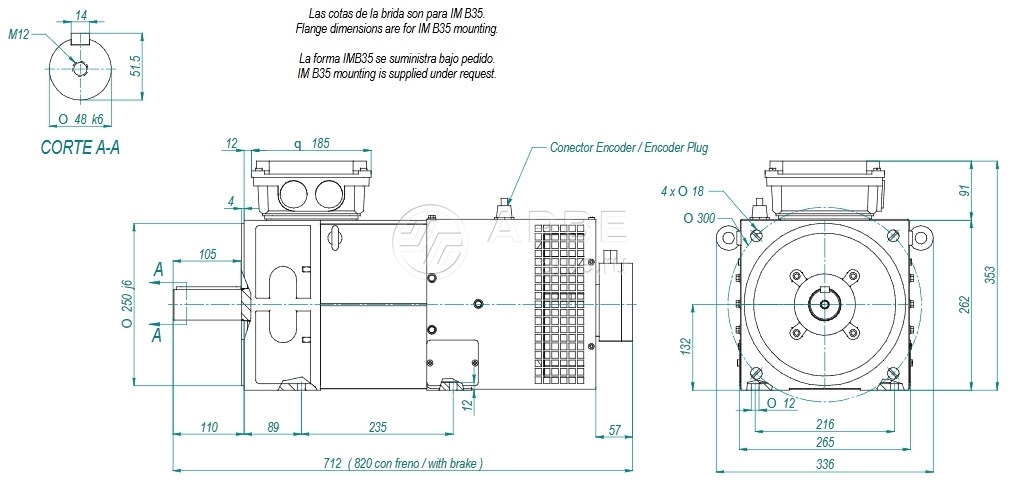

Overall Dimensions:  265mm Wide x 712mm Long x 353mm high overall.
Mounting:  Foot mount on 12mm holes at 216mm wide x 235mm centres, 89mm back from the shaft shoulder.
Weight:  105kg.
Rotor Inertia:  0.061kgm2.
Shaft:  48mm diameter x 110mm from shoulder with 14mm wide keyway.
Drive End Bearing:  Ball Bearing for a direct connected load.
Bearing Protection:  Not usually required at this size (Optional Insulated Bearing and/or Current Bypass Brush/Brushes available, on request)

Ambient Temperature:  40C at up to 1000m above sea level.
Cooling:  Force Ventilation Fan with Intake Filter fitted for 230V 1ph 50Hz supply at 0.6A.
